Euro Neck Spindle Mount, Spindle Motor Mount Bracket Clamp for all standard Spindle Motors with 43mm Motor flange.
Small 43mm Spindle Motor Holder, Motor Mount Bracket for Milling & Grinding Spindle Motors with 43mm neck.

Small Aluminium spindle motor mount bracket clamp for all milling & grinding spindle motors.
More robust aluminum 20mm h7-43mm clamp holder, fully anodized.

Please note mass motor / motor diameter.
For Suhner UAL series and other larger milling motors we have designed a different motor mount.

Suitable for Spindle Motors types:

- AEG GS 500 E
- AW-FSE 500 / 1050 / 1600
- Bosch GGS 27C / GGS 28C / GGS 28LC /
- Isel UFM 500 / UFM 1050
- Kress 530-FM / 800-FME / 1050-FME / 1050-FME-1
- Kress FM 6990 E / Kress FS 6901 E
- Makita GD0600 / GD0800C
- Metabo FME 737
- Proxxon BFW 40/E
- Suhner UAC 28-F / UAC 25-F / UAC 25-RF / UAC 30-RF
- Suhner UAD 28-F / UAD 25-RF / UAD 25-RF

- All Spindle and grinding motors with 43mm euro-neck and max. 80mm motor-diameter.

Scope of delivery:
1x 43mm Spindle Mount 73x73x20mm

Item condition: New
Color: Black or Silver

Made in Germany quality.

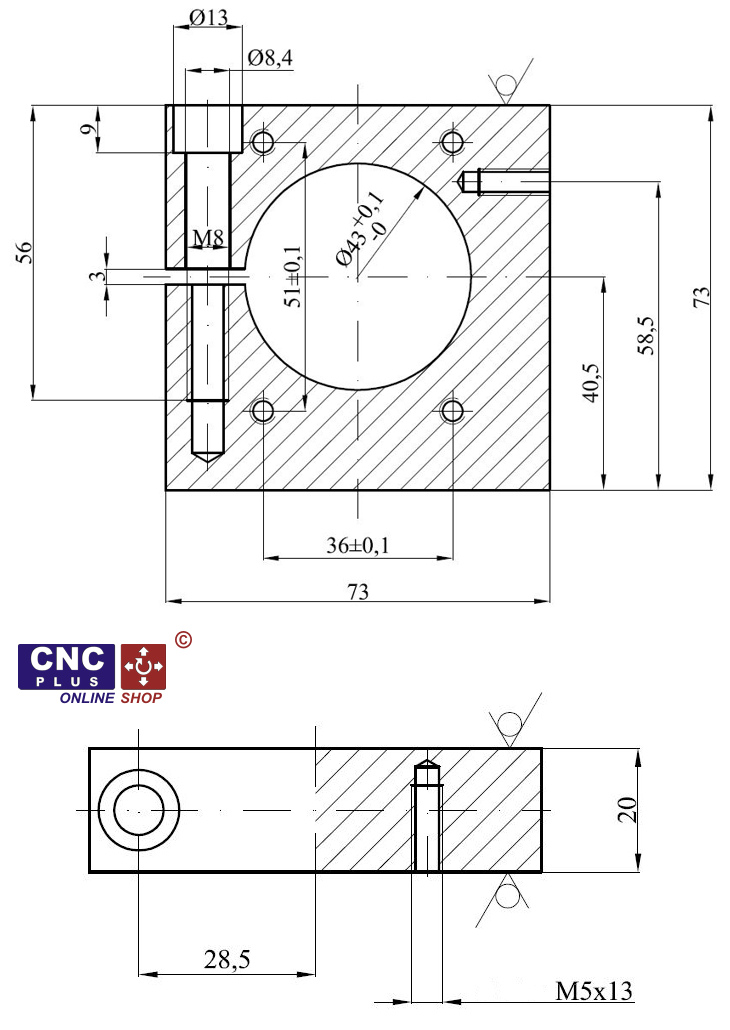

Technical Drawing.

Spindle Motor Mount Bracket Clamp for 43mm Euro-Neck Milling Spindle Motors.

Euro Neck Spindle Mount, 73x73x20mm Bracket Clamp.
