Euro neck spindle motor mount bracket clamp 165x88x20.

Product No.:
Z-02-0105
Zustand:
neu
Shippingtime:
2-4 days 2-4 days
36,00 EUR
incl. 19% tax excl. Shipping costs

 Add to cart

Add to wish list Back
Weight per unit: 0,58 kg

Euro neck spindle mount, spindle motor mount bracket clamp for spindle motors with 43mm motor flange.


A CNC spindle motor holder and motor mount bracket for large milling & grinding motors with a 43mm Euro neck motor flange.
This spindle mount has been designed specifically for CNC milling motors with large motor diameter
- such as Proxxon BFW 40 / E or Suhner UAL models.
The 165mm width was adjusted to the Isel Z axes but this engine bracket also fit for other Z-axis and CNC machines.

A stable and fully anodized spindle motor mount bracket clamp constructed of 20mm aluminum.
The mounting hole is 43mm and the motor flange is clamped in the spindle mount with an M8 screw.
The motor mount has below 4 x M5 threaded holes.
These holes are for machines accessories such as Chip extraction provided.
An M5 threaded hole on the side was designed for a spray cooling.


Spindle mount bracket clamp suitable for the following spindle motors:

- AEG GS 500 E
- AW-FSE 500 / 1050 / 1600
- Bosch GGS 27C / GGS 28C / GGS 28LC
- Isel UFM 500 / UFM 1050
- Kress 530-FM / 800-FME / 1050-FME / 1050-FME-1
- Kress FM 6990 E / Kress FS 6901 E
- Makita GD0600 / GD0800C
- Metabo FME 737
- Proxxon BFW 40/E
- Suhner UAC 28-F / UAC 25-F / UAC 25-RF / UAC 30-RF
- Suhner UAD 28-F / UAD 25-RF / UAD 25-RF
- Suhner UAL 10-RF / UAL 14-RF / UAL 23-RF / UAL 24-RF / UAL 25-F
- All spindle and grinding motors with 43mm euro-neck and motor diameter max. 110mm.


Delivery of the spindle mount.

1x 43mm Euro neck spindle mount bracket 165x88x20mm

Item condition: New
Color: Black or Silver

Made in Germany quality.


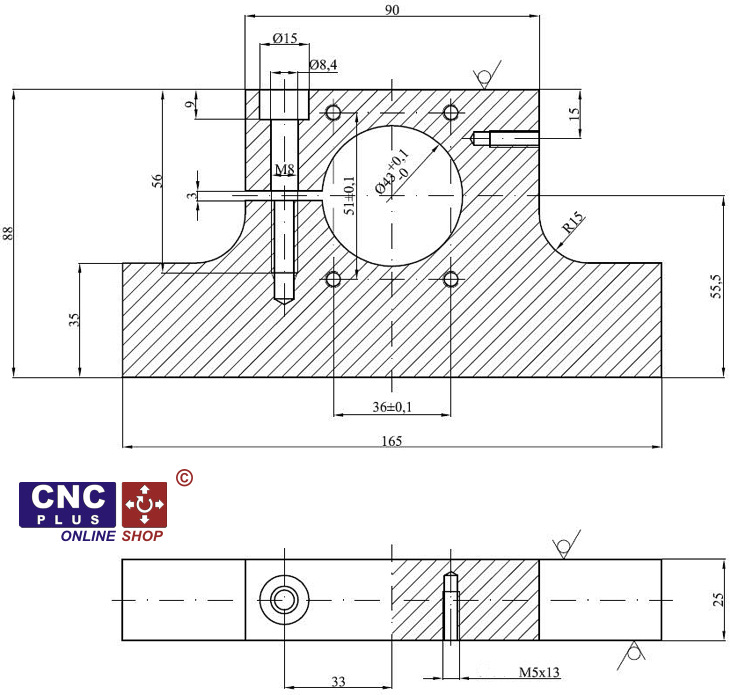

Technical drawing of the spindle motor mount bracket.



Spindle motor mount bracket clamp 165x88x20mm.
