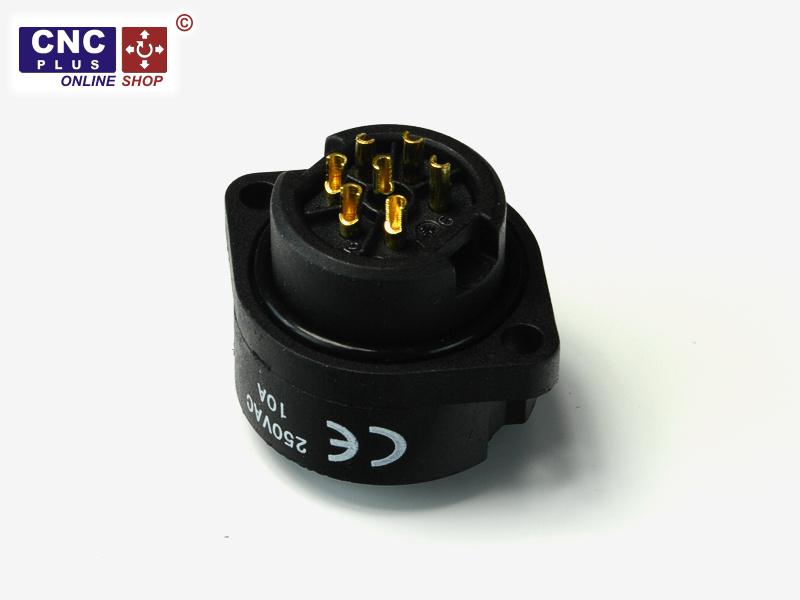

7 pin 10A chassis mount female connector, panel socket for panel or box mounting.

Product No.:
E-08-0140
Zustand:
neu
Shippingtime:
2-4 days 2-4 days
6,50 EUR
incl. 19% tax excl. Shipping costs

 Add to cart

Add to wish list Back
Weight per unit: 0,03 kg

7 pin industrial female chassis and panel mount connector, female receptacle housing mount socket.


6+PE / 7-pin WA22K7Z soldering termination panel mount female receptacle for panel and chassis or box mounting.
These female receptacle chassis connectors are ideally suited for CNC controls, control housing.
For stepper motors, reference switches, home switches, limit switches or milling spindle motors.

7 gold-plated soldering terminals for 7 cables up to max. 0.75mm2 and secure electrical connection.
Industrial and professional circular version with screw locking for a secure and solid connector.

The female panel socket is locked in matching 7-Pol cable male connectors.
We recommend this socket up. 8A / 250V.

Specifications of the WA22K7Z 7-pin female receptacle and panel mount connector:

Type: panel-mount connector / chassis-mount socket
Mounting Type: panel, chassis, housing, box
Connector type: socket / female
Number of pins: 7 / 6 + PE (gold-plated)
Contact termination: soldering termination
Contacts rating: 10A/250V
Conductor cross-section: max. 0.75 mm² / 18 AWG
Mounting hole / panel cutout diameter: 21.5 – 22.0mm
Operating temperature: -30…70°C
Protection class: IP67 rating

Supplied with cap.
